The most professional roll forming machine and light gauge steel framing roll forming machine manufacturer
4 Years
| Ask Lasest Price | |
| Brand Name : | JCX |
| Model Number : | Slitting Line Machine |
| Certification : | CE ISO |
| Price : | USD95000-USD100000 PER SET |
| Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 10 SETS PER MONTH |
| Delivery Time : | 20 working days |
High speed slitting line machine for stainless steel coil fully automatic
1. Description of Slitting Line Machine:
Slitting Machine is main used in slitting the raw materials like the Aluminum, Stainless Steel Strips, Steel Coil, Carbon Steel Strips, and Copper Strips. The big coils are into a smaller width coils by setting the slitting cutters on cutter stand, The main equipment’s of slitting machine are un-coiler, coil lifting trolley, Pinch roll unit, leveling unit, slitting stand, scrap winder units , tension roll unit, re-coiler, over arm separator, coil pusher, unloader etc.
Because the thickness of the raw material is different, the yield strength is different, and the profile profile is different, these factors affect the configuration of the machine is different, so if you want to customize a sitting line, please send me your raw material, the thickness of your material, yield strength, etc., so that our engineers can help you customize the right machine according to your requirements.
2. Technical details of Slitting Line Machine:
| Bending Machine Specifications | |
| Weight | About 25 tons |
| Size | About 40000x7500x2000mm according to your profile |
| Color | Main color: blue or as your requirement |
| Warning color: yellow | |
| Suitable Raw Material | |
| Material | Galvanized Steel Coils, Color steel |
| Thickness | 0.3-6mm |
| Yield Strength | 235Mpa |
| Bending machine Main Technical Parameters | |
| Controlling system | PLC and button |
| Electric Power requirement | Main motor power: 180kw |
| Hydraulic unit motor power: 15kw | |
| Electric voltage | According to customer’s requirement |
3. Main components of Slitting Line Machine:
| No | Name | Quantity |
| 1 | Entry coil car | 1 |
| 2 | Hydraulic Decoiler | 1 |
| 3 | Press and pinch device | 1 |
| 4 | Hydraulic cutter | 1 |
| 5 | Anti-Tracking Device | 1 |
| 6 | Slitter | 1 |
| 7 | Scrap winder | 1 |
| 8 | Tension stand | 1 |
| 9 | Recoiler | 1 |
| 10 | Exit coil car | 1 |
| 11 | Hydraulic system | 1 |
| 12 | Electrical system | 1 |
4. Slitting Line Machine Advantages
· Germany COPRA software design
· 5 engineers with more than 20 years experience
· 30 professional technician
· 20 sets advanced CNC production lines on site
· Passionate Team
· We have 20 years foreign trade exported experience. We can ensure the machine quality.
6. Slitting Line Machine Application
This machine is widely used in a wide sheet steel coil is slit into narrower or shorter straps.

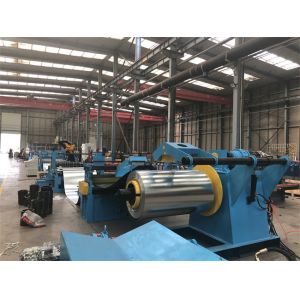

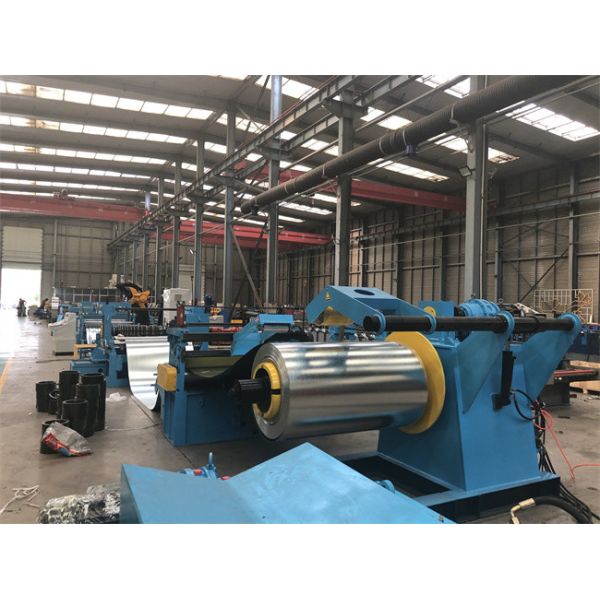

7. Slitting Line Machine Product photo
FAQ
Q. What's your payment terms and delivery time?
A: 30% as the deposit by T/T in advance, 70% as the balance payment by T/T after your inspect the machine well and before delivery. Of course your payment terms are acceptable. After we get down payment, we will arrange production. About 30-45 days for delivery.
Q:How about your after-sale service?
A: We provide 12 months free warranty and free technical support for the whole life about the glazed tile forming machine. During warranty period, if the mahcine parts broken, we can send the new ones freely.
|
|
